E-Case report
Adolescent Idiopathic Scoliosis T4‑L2Dr. med. Louis Boissière
Pre OP
Clinical Case – Adolescent Idiopathic Scoliosis
Dr. med. Louis Boissière
Orthopedic Surgeon
Clinique du Dos
Bordeaux – Terrefort
Bruges
France
Patient Information
Idiopathic scoliosis in 17 years old female patient.
Pre OP Radiographs standing, frontal & sagittal views.
Surgical plan including T4-L2 posterior instrumentation
-
Lenke 1B
-
Cobb angle 55°
-
PI: 48°
Intra OP

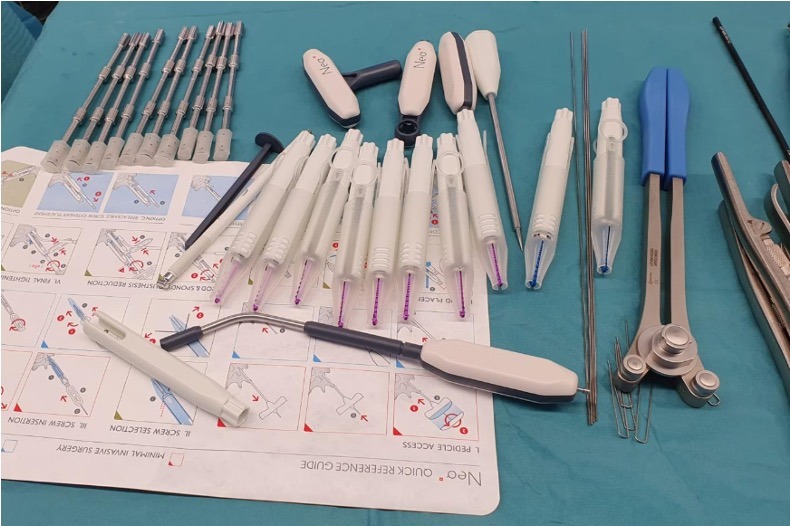

Neo Pedicle Screw System™ OR table set up

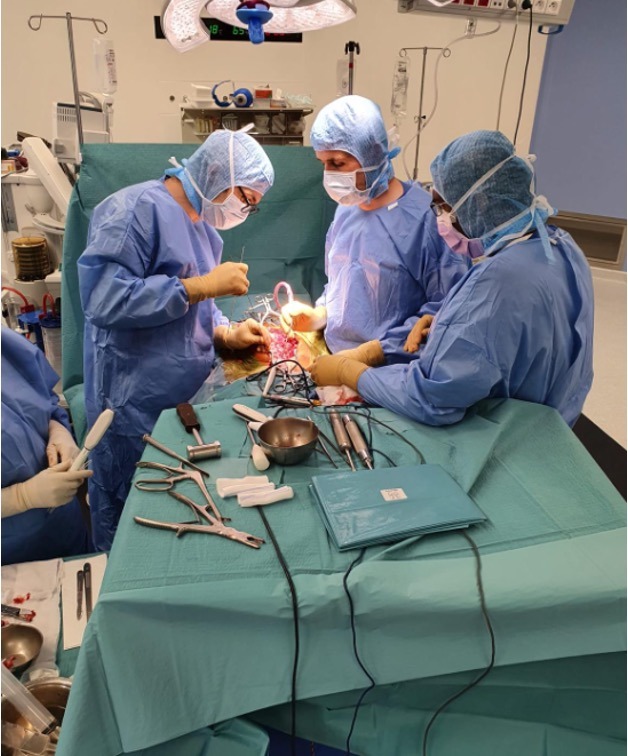

Open surgery
Neo Pedicle Screw System™
Totally 16 pedicle screws placed.
Left side: 11 pedicle screws, and every 3rd screw was used as a monoplanar screw.
Right side: 5 pedicle screws
- In the thoracic spine: Ø5mm screws used
- In the lumbar spine: Ø6mm screws used

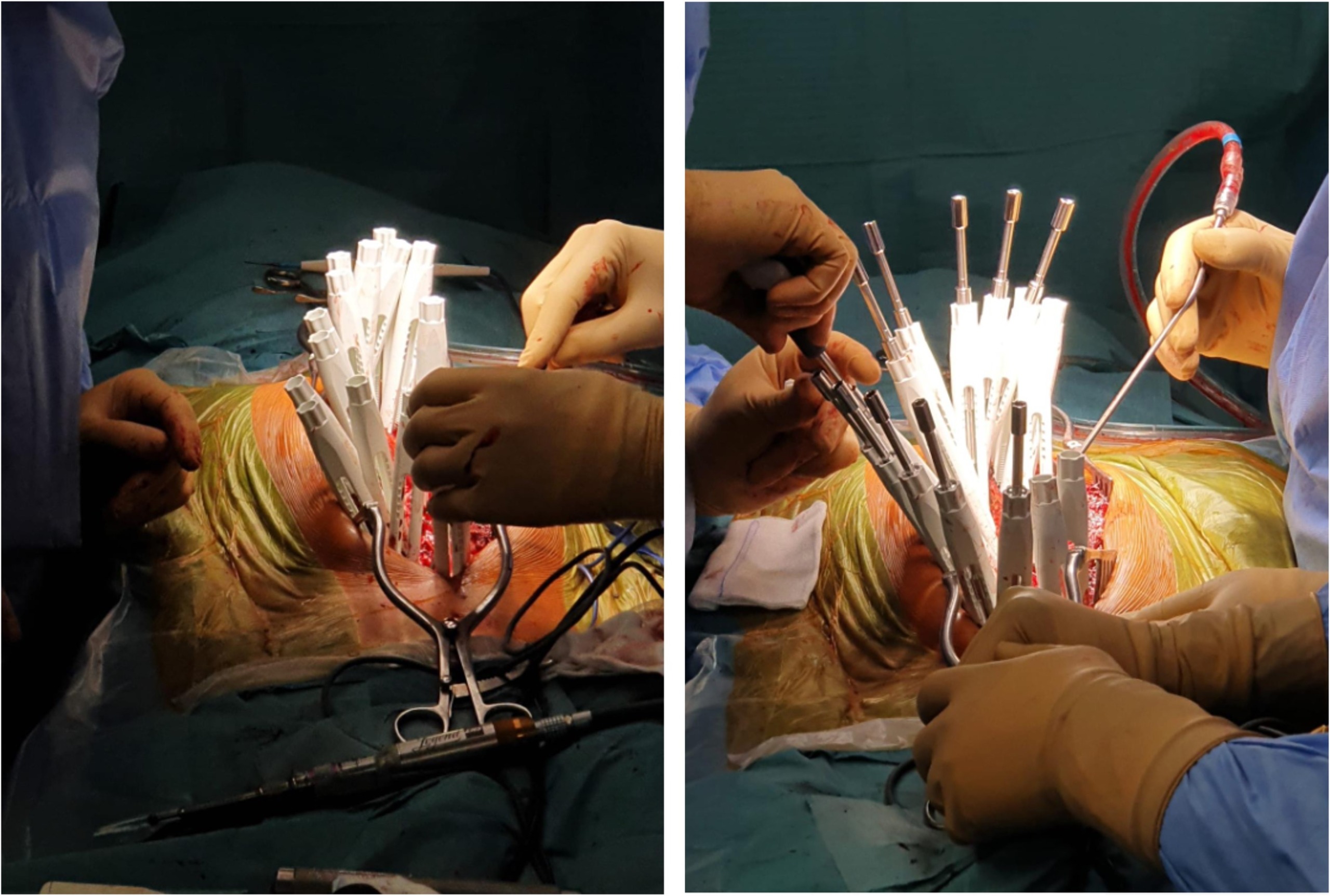

Rod contouring, correction and placement
Rods: 400mm titanium
Video showing the final fixation
Time of surgery: 2 ½ hours
Post OP
Post OP standing Radiographs
sagittal & frontal views
Published with the approval of Dr. med. Louis Boissière
